Hydraulic Roadway rescue Cutter, GYJQ-63-28/150-B GYJQ-63-28/150-B manufacturer from China Shandong Aolai Machinery Technology Co., Ltd

Product Detail

Model No.: GYJQ-63-28/150-B

Packing: Wooden cases

Style: Handle

Means of Transport: Ocean

Delivery Date: 7 days after full payment

Brand Name: Aolai

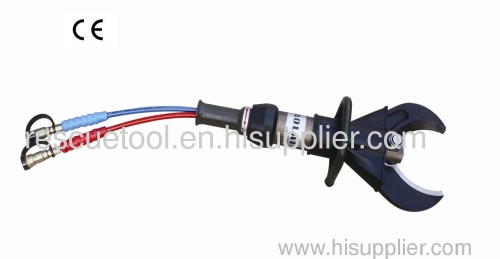

Hydraulic Roadway rescue Cutter
Used for vehicle accident rescue

Hydraulic Roadway rescue Cutter, GYJQ-63-28/150-B:

Product Description:

Light weight; large scissors mouth along with strong shearing ability; short time for both opening and closing to accelerate the process of rescue.

Scope of Application:

#1.Rescue for highway, railway traffic accidents, the earthquake disaster, shipwreck and building collapsed

#2.Cut off vehicle parts, metal structure, heterogenic steel pipe, steel plate and so on

Product Features:

#1.Shearing Blade adopt High-quality Heat-treated Tool steel, with surface anodized, good in wearing resistance

#2.With Protective cover to prevent the splash during shearing, also automatic reset manually valves, can provide safety for the operator

#3.Ergonomically designed, can automatically push the material to the biggest shearing strength of the blade center.

Major Parameter for Hydraulic Cutter B
Model	GYJQ-63-28/150-B
Max. Opening Distance of Cutter Edge	≥150 mm
Rated Working Pressure	63Mpa
Max. Shear Capability (Q235 materials)	φ28 mm(Circle steel)
Max. Cutting Force	390 KN
Opening Time without Load(Oil is Supplied by Motor Pump)	≤25 s
Closing Time without Load(Oil is Supplied by Motor Pump)	≤30 s
Weight (Working Mode)	≤13.2 kg
Dimensions LWH	710210165mm
